EPISODE VI: RETURN OF THE JEDI
Used by:
Gamorrean Guard
Klaatu Guard


Click here to reduce this image.

As the dark figure entered the palace, the pair of guards crossed their weapons to bar his progress. The figure raised it's hand and dispelled the guards with an invisible Force. One guard carried this weapon, but it was no match for a Jedi knight.

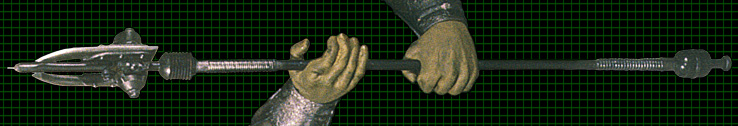

The Gamorrean guard vibro-lance was assembled onto a what is probably a length of 1 inch outside diameter PVC plumbing pipe. Though reference on this weapon is limited we know at least a few of it's components. Starting from the top, the parts are as follows.

The tip of the staff may be the same as that used on the Vibro-Axe though we can't be certain. If it is the same piece, it is made of nickel plated brass and is used to adapt a faucet or pipe to a rubber hose, like on a dishwasher. Shown below is a hose adaptor very similar to the one used on the Vibro-Axe. The actual piece was likely a quick-connect type of hose adaptor, the exact model has not yet been found.

Similar Hose Adaptor
Photo: Mat Clayson

The two blades of the weapon were likely custom made.

Below the blade assembly is a part from a ball catch toy. Shown in the photo below, a ball would be caught in the yellow cone and then launched by air released by hitting the red plunger at the bottom. The red plunger was removed and mounted on the vibro-lance pole upside down.

Comedian Ryan Stiles impersonates Princess Leia with two ball catch toys on his head.
From the TV show "Who's Line is it Anyway?"

The grip section below this piece appears to be wrapped wire. Lower down before the next major part, thicker wrapped wire was probably used.

The bulbous part at the bottom of the vibro-lance is an attachment for a garden hose called a Soft-Flo Soaker. Originally used to soften the flow of water from the hose when watering, there is a white or yellow filter seen inside through the slits in the bright green plastic.

The end of the lance looks like it may be a plastic baseball bat handle.

A Klaatu guard that drags Luke out of the Rancor pit (after the creature's untimely demise) also carries the Vibro-lance.

The Klaatu Guard
